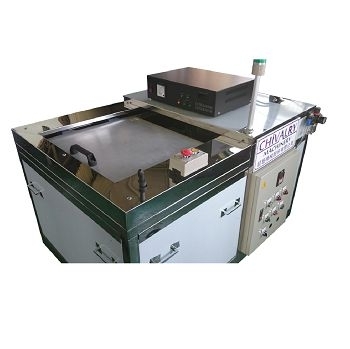

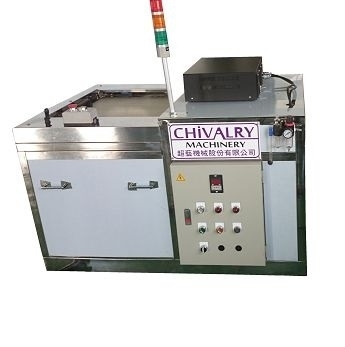

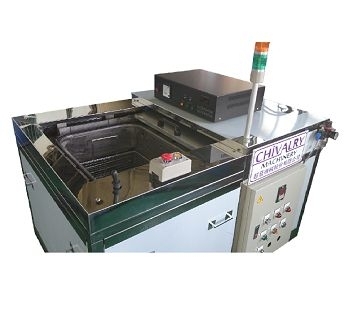

Single Tank-Manual Vacuum Cleaner CH-HOTV Series



Single Tank-Manual Vacuum Cleaner CH-HOTV Series

Project Specification

Use solvent

  • Hydrocarbon solvents (carbonized hydrogen), modified alcohols, or other
    non-aqueous organic solvents.

Suitable

  • Cleaning solvents with poor ultrasonic effect, parts with blind or deep holes,
    cleaning agents with flash points, etc.

Cycle time

  • 3~5min/ basket(Time can be set)

Ultrasonic

  • Have
Optional
  • Basket washing rotating mechanism, recycling machine, filter system.
Equipment Specifications
  • Customized cleaning equipment.
Characteristic
  • SafetyThe whole machine operates in a closed environment, safe,
    explosion-proof, and low chemical liquid volatile.

  • Strong cleaning powervacuum degassing cleaning, which greatly increases
    the intensity of ultrasonic waves, and can clean pollution sources that cannot
    be removed during atmospheric cleaning.

  • Comprehensive cleaningusing vacuum degassing cleaning, the lotion can be
    completely immersed in the deep and blind holes of the object to be cleaned,
    achieving the effect of comprehensive cleaning.

  • Cooperate with rolling/shaking mechanism to make cleaning more without
    blind spots.




Cleaning basket
Quartet basket  Hexagon roll basket  Scroll box basket
清洗機 清洗機 清洗機
Cleaning procedures
Gate opening Into the basket Gate closed and vacuum
-starts cleaning

洗淨機 洗淨機 洗淨機
Ultrasound intensity comparison chart(Suitable solvent:Hydrogen carbonation )
                             There is no effect on the                 Normal condition               surface of tin-foil after                                            placing into ultrasonic tank

                           Surface of tin foil is severe
  With degassing machine            damaged after- placing into
                           degassing ultrasonic tank
