Product
description

• This equipment has the functions of cleaning, drying and recycling.

Cleaning process

• NO1 tank ultrasonic vacuum cleaning：using vacuum degassing, the ultrasonic intensity
  is greatly increased, it can clean the pollution sources that cannot be removed during
  normal pressure cleaning, and the lotion can be completely immersed in the deep holes
  and blind holes of the cleaning object. Full cleaning performance.

• The second tank Vacuum steam washing + vacuum drying function：

  1.Use solvent vapor as the last checkpoint of the cleaning process, so that the dirt on
  the surface of the cleaned workpiece is completely washed off, achieving a fairly
  clean cleaning effect.

  2.After steam cleaning, using the heat storage of the workpiece itself, it directly enters
  the vacuum drying, so that the workpiece can achieve a 100% complete drying effect.

  3.The solvent vapor is condensed and then recycled, no waste.

Recleovering volume

• >80L/hr (based on hydrocarbon solvents

Use solvent

• Hydrocarbon solvents (carbonized hydrogen), modified alcohols, or other non-aqueous
  organic solvents.

• Use for workpieces that require considerable cleanliness or lotion loss and the workpiece is not easy to dry.

• 6~10min/ basket(Time can be set)

Optional

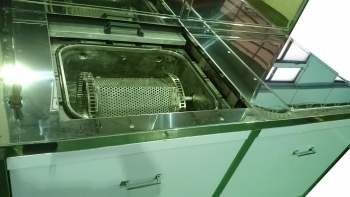

• Rotating mechanism, recycling machine.

Equipment Specifications

• Customized cleaning equipment.

• Safety：The whole machine operates in a closed environment, safe, explosion-proof, andlow chemical liquid volatile.

• Environmental protection：air emissions are far below the VOC standard, comply with ROHS or any other environmental protection regulations, and there are no environmental issues such as waste water and air pollution discharge.

• Multifunctional：cleaning, drying, and recycling are all in place, no need to purchase
  additional recycling machines.

• Strong cleaning power：vacuum degassing cleaning, which greatly increases the intensity of ultrasonic waves, and can clean pollution sources that cannot be removed during atmospheric cleaning.

• High cleanliness: steam cleaning greatly improves the cleanliness of the workpiece, which can meet any severe precision cleaning requirements.

• Cooperate with rolling/shaking mechanism to make cleaning more without blind spots
